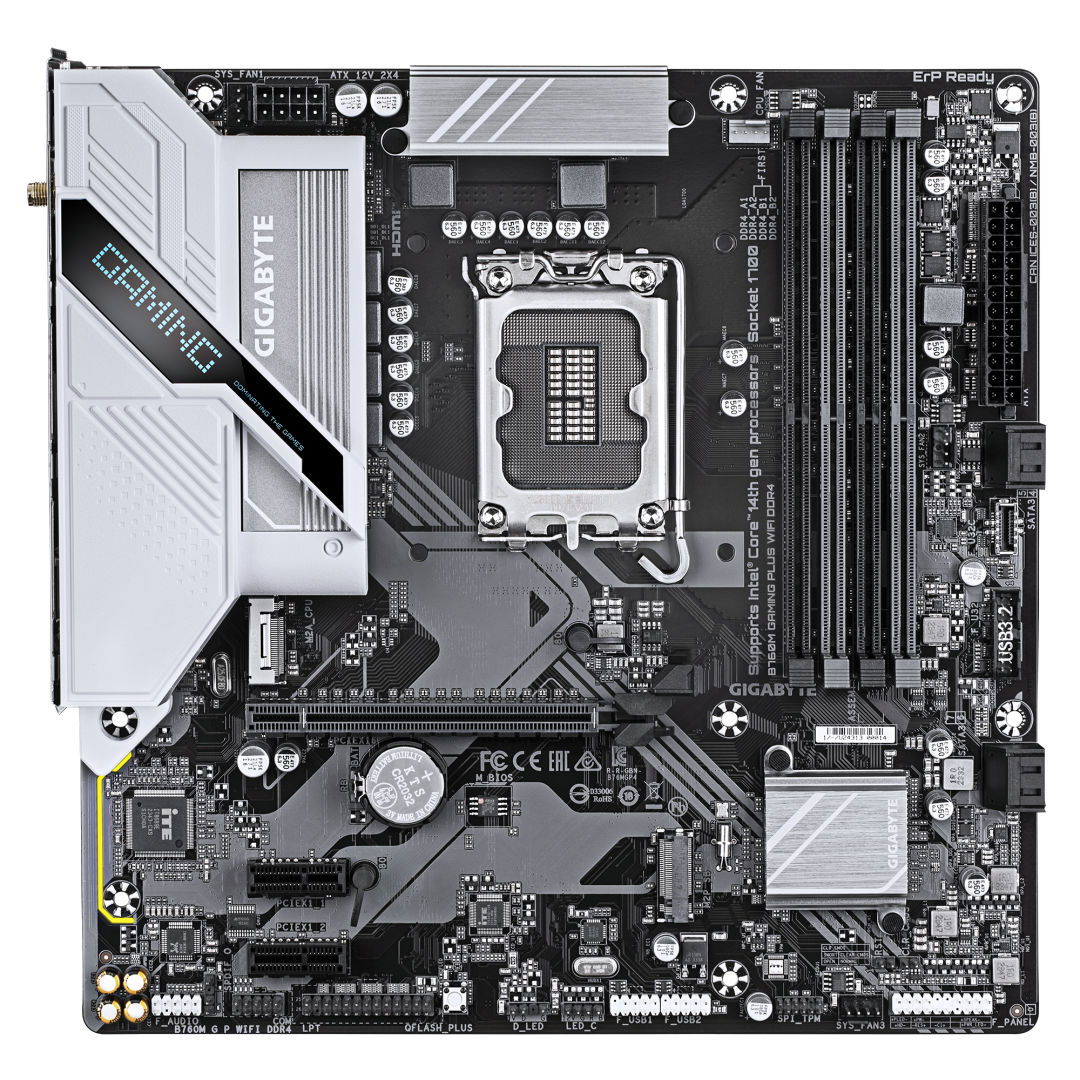

Placa de Baza GIGABYTE B760M GAMING PLUS WIFI LGA1700

Name: Placa de Baza GIGABYTE B760M GAMING PLUS WIFI LGA1700 • TechPlaza.ro
Brand: GIGABYTE
SKU: B760M G P WIFI DDR4
Price: 593 RON
Availability: InStock

Adaugă la favorite

718 lei TVA Inclus

În stoc

Producător: GIGABYTE

Garanție: 36 luni

SKU: B760M G P WIFI DDR4 Categorie: Placi de baza

Îți livrăm produsul oriunde în România direct din stoc

Ridici produsul din easyBox-ul preferat

Plătești în siguranță cu cardul de debit și de credit sau chiar în rate.

Returnezi produsul în 14 zile de la achiziție.

Descriere

Placa de Baza GIGABYTE B760M GAMING PLUS WIFI DDR4 LGA1700, 4x DDR4, 1x HDMI 1x DP, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6GB/s, mATX

Informații suplimentare

PCI
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-Fi	Yes
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
Country of origin	China
RAID support	Yes
Component for	PC
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Product colour	Grey
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Maximum internal memory	128 GB
Bluetooth version	5.3
Headphone outputs	1
USB 2.0 ports quantity	2
Depth	244 mm
Products per shipping (inner) case	1 pc(s)
Batteries included	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
HDCP	Yes
Screws included	Yes
DisplayPort version	1.2
Package depth	268 mm
DisplayPorts quantity	1
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Package height	68 mm
Model Chipset	B760
Gaming	Da
Format	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
BLUETOOTH	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Power source type	ATX
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Height	35 mm
Antenna included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
Number of storage drives supported	6
S/PDIF out connector	Yes
Motherboard chipset	Intel B760
BIOS memory size	128 Mbit
Package width	270 mm
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Number of chassis fan connectors	3
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
Number of EPS power connectors (8-pin)	1
Maximum internal memory supported by processor	128 GB
Weight	1.1 kg
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Supported memory clock speeds	5333 MHz
Parallel connector	Yes
WLAN controller model	Realtek RTL8851BE
Package weight	1.2 kg
Maximum internal memory per slot	32 GB
Number of RGB LED pin headers	2
MB-Socket	1700
RAM-Slots	4
MB-Format	micro-ATX
PCI-Ex1	2
Width	24.4 mm
Producator	GIGABYTE
Garantie	36
