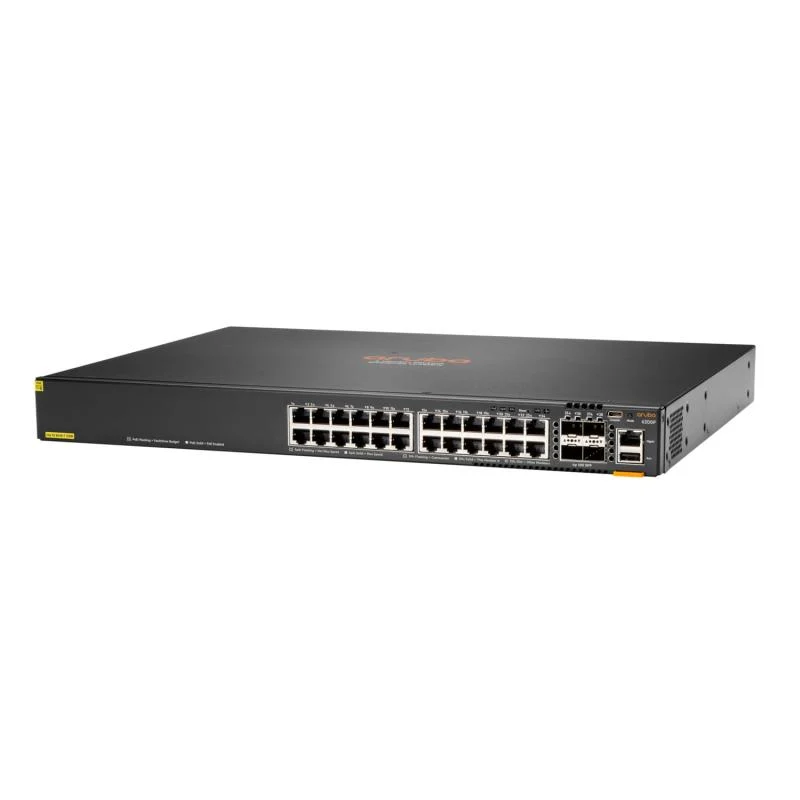

HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W

Name: HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W • TechPlaza.ro
Brand: ARUBA NETWORKS
SKU: JL725A
Price: 21121 RON
Availability: InStock

Adaugă la favorite

25.556 lei TVA Inclus

Doar 1 rămase în stoc

Producător: ARUBA NETWORKS

Garanție: 999 luni

SKU: JL725A Categorie: Switch-uri

Îți livrăm produsul oriunde în România direct din stoc

Ridici produsul din easyBox-ul preferat

Plătești în siguranță cu cardul de debit și de credit sau chiar în rate.

Returnezi produsul în 14 zile de la achiziție.

Descriere

Lifecycle

Obsolete Date 30-06-2025
End of support date 31-12-2104

Specifications

Stacking capabilities 8 members
Weight 4.90 kg
Product dimensions (imperial) 1.73 x 17.4 x 12.9 in
Product dimensions (metric) 4.39 x 44.2 cm x 32.7 cm
Power supply name Fixed power supply (500W) Up to 370W of Class 4 PoE Power
Memory and processor Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power consumption 65W at 230 VAC
Weight 10.80 lbs
PoE capability 370W
Input voltage 100V-120V/200V-240V
Throughput Up to 95.2 Mpps
Routing/switching capacity 128 Gbps
Latency 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Ports 24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Warranty Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.

Quickspecs

Overview

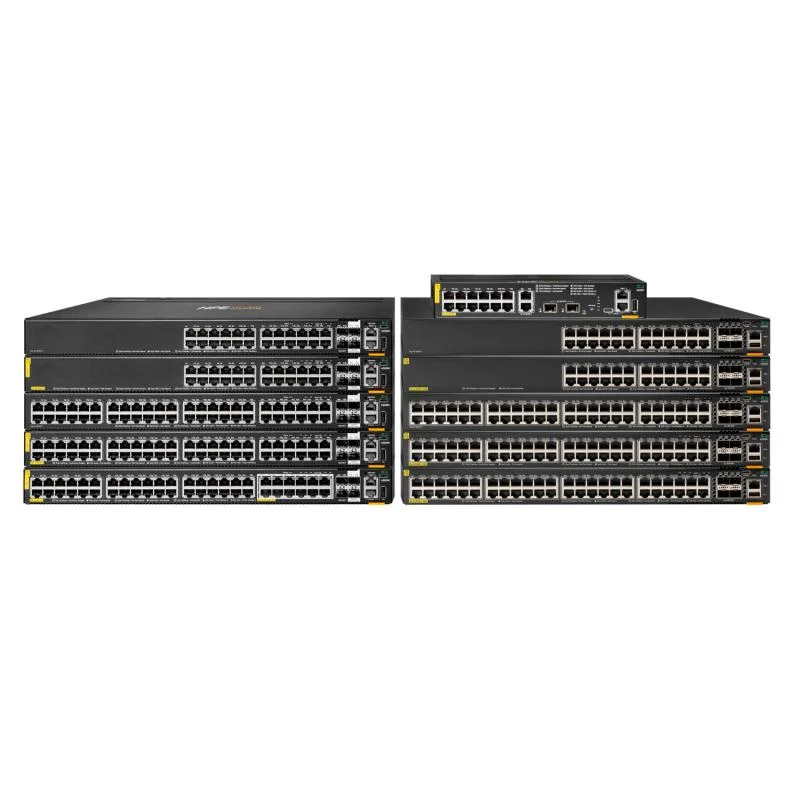

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

What’s new

Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.

Features

Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.

The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.

Performance and Power

Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Automation and Analytics

The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.

Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.

The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.

Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.

The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.

Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

Smarter Segmentation

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.

Compatible products

Documents

Informații suplimentare

Installed SFP modules quantity
Stackable	Yes
Storage temperature (T-T)	-40 – 70 °C
Operating temperature (T-T)	0 – 45 °C
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Internal memory	8192 MB
Operating altitude	0 – 3048 m
Built-in processor	Yes
Processor frequency	1800 MHz
Weight	4.9 kg
AC input voltage	100 – 240 V
Power over Ethernet (PoE)	Yes
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Switch type	Managed
10G support	Yes
Form factor	1U
Access Control List (ACL)	Yes
Flash memory	16384 MB
Flow control support	Yes
IGMP snooping	Yes
Number of power supply units	1
DHCP features	DHCP relay, DHCP server
Memory type	DDR4-SDRAM
Depth	327 mm
Power source	AC
Height	43.9 mm
Basic switching RJ-45 Ethernet ports type	24
Spanning tree protocol	Yes
Multicast support	Yes
Switch layer	L3
Switching capacity	128 Gbit/s
Operating relative humidity (H-H)	15 – 95%
Storage relative humidity (H-H)	15 – 90%
MAC address table	32768 entries
Total Power over Ethernet (PoE) budget	370 W
Width	442 mm
Number of VLANs	4094
Console port	USB
USB Type-A ports quantity	1
Transmission distance (max)	10 km
Throughput	95.2 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Packet buffer memory	8 MB
Authentication	MAC-based authentication, Web-based authentication
Authentication type	RADIUS, TACACS+
MLD entries	1024
Management protocols	SNMPv2c, SNMPv3
Routing protocols	OSPFv2, OSPFv3, RIP-2
Airflow direction	Front-to-back airflow
Physical stacking (units)	8
Processor model	ARM Cortex-A72
Non-operating altitude	0 – 4600 m
Porturi RJ 45	24-28
Viteza transfer	Gigabit
Porturi SFP	3-4
Montare in rack	Da
SFP module slots quantity	4
Management	Da
PoE	Nu
Producator	ARUBA NETWORKS
Garantie	999
